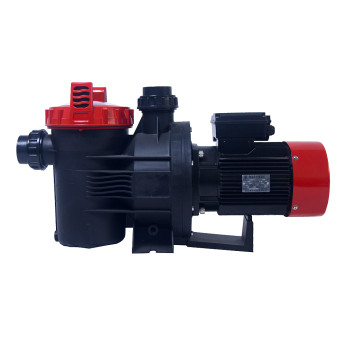

Factory Price New Arrival NSE Red 50Hz 2.0HP 2 inch Swimming Pool Pump for In/Above Ground Pool | ECAS SASO Certified 2 Years Warranty
- group name
- In-ground Pool Pumps
- Min Order
- 1 piece
- brand name
- Maygo Pool Equipment Manufacturer
- model
- NSE Red
- Nearest port for product export
- Ningbo, Shanghai, Guangzhou, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Sun, 24 Nov 2024 05:13:40 GMT
Paramtents
Working temp: 5-50℃
Ambient temperature: ≤40℃
System pressure: 0.3MPa
P1 Power: 0.5-2HP
Flow Rate: 14-28m3/h
Head: 6.5-19m
Packging & Delivery
- 58cm x26cm x39cm
-
Min Order1 piece
Briefing
Factory Price New Arrival 50Hz 1.0HP Swimming Pool Pump for In/Above Ground Pool | ECAS SASO Certified 2 Years Warranty
Detailed
Factory Price New Arrival 50Hz 1.0HP Swimming Pool Pump for In/Above Ground Pool | ECAS SASO Certified 2 Years Warranty
Working Condition
●Working temp:5-50℃
●Ambient temperature:≤40℃
●System pressure:0.3MPa
●P1 Power:0.5-2HP
●Flow Rate:14-28m³/h/233-466 l/min
●Head:6.5-19m
Parameter
Model | HP | Head(m) | Flow(m³/h) | Flow(l/min) | L*W*H(cm) | GW(KG) |
NSE35 | 0.5 | 6.5 | 14 | 233 | 58*26*39 | 10.3 |
NSE50 | 0.75 | 8.5 | 17 | 283 | 58*26*39 | 11.1 |
NSE75 | 1 |
11.0
|
21
|
350
|
58*26*39 |
11.7
|
NSE100 | 1.2 |
14.5
|
24
|
400
|
66*26*41 |
14.1
|
NSE120 | 1.5 |
16.5
|
25
|
417
|
66*26*41 |
15.3
|
NSE150 | 2 |
19.0
|
28
|
467
|
66*26*41 |
16.5
|
Performance Curve & Installation Sketch
Technical Advantages
Technical
CFD Hydraulic Model be designed in Euro R&D center with higher efficiency than competitor
First-class Motor
Protection class:IP55.Insulation class: F
Built-in overheat protection short circuit device
Impeller
Impeller be designed in Euro R&D center with much more energy saving
Mechanical Seal
Mechanical Seal module material:Graphite/Silicon Carbide
Well Made Coil
Well made coil with a built in thermal protector allows longer lifetime of the motor.
SS Shaft
High-precision Stainless Steel shaft with higher strength and reduce the noise
Various Plug Available
Pump power plug can be custominzed to any style you need to meet local standard in every Country.
Perspective Cover & Pressing Cap
Material PC+10%GF
Filter Basket
Material:PP
Motor Fan Cover
Material:Stainless Steel
