Whosaler Cartridge Filter AF100 22.9m3/h for Pool,Pond,Sauna,Jacuzzi | Easy to Install Water Filter Element

group name: Cartridge Filters

Min Order: 1 piece

brand name: Maygo Pool Equipment Manufacturer

model: AF100

Nearest port for product export: Ningbo, Shanghai, Guangzhou, Yiwu

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union

update time: Thu, 21 Nov 2024 17:31:41 GMT

contact supplier

Paramtents

Operation Pressure 80Kpa
Filtration Area 2.25-13.72 m2
Design Flow: 5.5-33.4 m3/h
Inlet/Outlet: 1.5/2inch
Diameter 397mm

Packging & Delivery

Min Order1 piece

Briefing

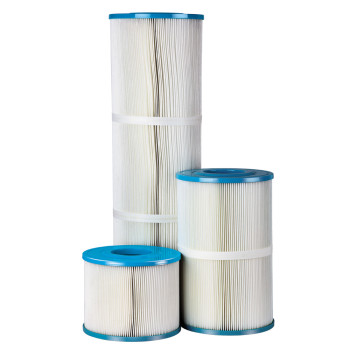

33.4m3/h Cartridge Filters For Pool Replacement With Factory Direct Supply

Detailed

33.4m3/h Cartridge Filters For Pool Replacement With Factory Direct Supply

Cartridge filtration is an effective trouble-free proven method of filtration Pool water enters the filter and passes through a polyester single element cartridge. Suspended particles are trapped and the water is returned to the pool. As the build-up of dirtin the elementincreases so the water pressure rises and the flor decreases When the pressure reaches an unacceptable level. the element must be removed and cleaned(spray washing with a common gardein hose is generally sufficient.

Performance Table

Model	H(mm)A	H(mm) B	DM(mm)C	DM(mm)D	Filtration Area (m2)	Flow (m3/h)
AF25	445	387	225	397	2.25	5.5
AF50	625	567	225	397	4.63	11.4
AF75	805	747	225	397	7	17
AF100	985	927	225	397	9.38	22.9
AF150	1165	1107	225	397	13.72	33.4
