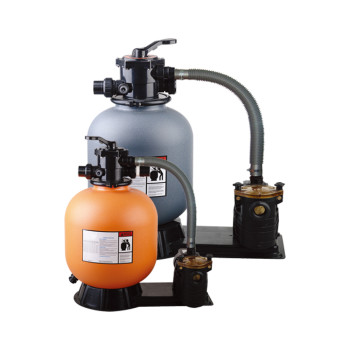

China Factory Price In Stock 0.35HP 50Hz Pool Filtration System
- group name
- Compact Filter Systems
- Min Order
- 1 piece
- brand name
- Maygo Pool Equipment Manufacturer
- model
- NGW2509
- Nearest port for product export
- Ningbo, Shanghai, Guangzhou, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 18:14:23 GMT
Paramtents
Max Working Pressure 200kpa/28psi/2.0bar
Factory Testing Pressure 300kpa/44psi/3.0bar
Max Water Temp 40℃(104℉)
Size Of Silica Sand 0.5-0.8mm
Color can be customized Yes
Diameter 360-520mm
Pump Power 0.25-0.75KW
Nozzle 1.5 inch
Packging & Delivery
-
Min Order1 piece
Briefing
360mm Factory Direct Supply Plastic Filter Pump For In/Above Ground Pool 0.35HP 220V-240V 50Hz 2 Year Full USA Warranty
Detailed
360mm Factory Direct Supply Plastic Filter Pump For In/Above Ground Pool 0.35HP 220V-240V 50Hz 2 Year Full USA Warranty
Features
●Compact and light weight
●Designed for most domestic swimming pools or SPA pools
●Clamp lock is designed to allow 360 degree rotation to simplify installation
●Easy-to-use multiport valve lets you select any of the valve/filter operation with a simple lever-action
Performance Table
| Model No. |
A | B | Filter Area(㎡) |
Pump (KW) |
Valve Connections |
Max Flow Rate |
Sand(KG) | ||
| mm | mm | ||||||||
| NGW2509 | 360 | 750 | 0.1 | 0.25 | 1.5inch | 50mm | 72LPM | 4.32m³/h | 20 |
| NGW2510 | 410 | 815 | 0.13 | 0.37 | 1.5inch | 50mm | 102LPM | 6.48m³/h | 35 |
| NGW2511 | 460 | 820 | 0.16 | 0.55 | 1.5inch | 50mm | 135LPM | 8.1m³/h | 45 |
| NGW2512 | 520 | 845 | 0.22 | 0.75 | 1.5inch | 50mm | 185LPM | 11.1m³/h | 85 |
Installation Sketch
Technical Advantages
Technical
CFD Hydraulic Model be designed in Euro R&D center with higher efficiency than competitor
First-class Motor
Protection class:IP55.Insulation class: F
Built-in overheat protection short circuit device
Impeller
Impeller be designed in Euro R&D center with much more energy saving
Mechanical Seal
Mechanical Seal module material:Graphite/Silicon Carbide
Well Made Coil
Well made coil with a built in thermal protector allows longer lifetime of the motor.
SS Shaft
High-precision Stainless Steel shaft with higher strength and reduce the noise
Various Plug Available
Pump power plug can be custominzed to any style you need to meet local standard in every Country.
Multiport Valve
Easy to use multiport valve lets you select any of the valve/filter operation with a simple lever-action
Filter Basket
Material:PP
PE Filter
Compact and light weight.Clamp lock is designed to allow 360 degree rotation to simplify installation
