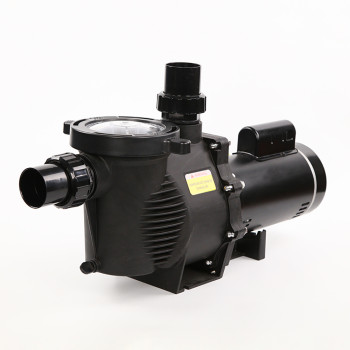

60Hz Booster Pump 4500GPH 550W For In/Above Swimming Pool High Flow Rate High Head
- group name
- In-ground Pool Pumps
- Min Order
- 1 piece
- brand name
- Maygo Pool Equipment Manufacturer
- model
- NSC-L50
- Nearest port for product export
- Ningbo, Shanghai, Guangzhou, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 17:12:30 GMT
Paramtents
Working temp: 5-50℃
Ambient temperature: ≤40℃
System pressure: 0.3MPa
Horsepower 0.75-2HP
P1 Power 550-1500W
Flow Q: 17-28m3/h
Head: 8.5-19m
Flow Rate: 4500-7400 GPH
Packging & Delivery
-
Min Order1 piece
Briefing
60Hz Booster Pump 4500GPH 550W For In/Above Swimming Pool High Flow Rate High Head
Detailed
60Hz Booster Pump 4500GPH 550W For In/Above Swimming Pool High Flow Rate High Head
Working Condition
●Working temp:5-50℃
●Ambient temperature:≤40℃
●Working pressure:0.3MPa
●P1 Power:0.75-2HP
●Flow Rate:17-28m³/h/283-466 l/min
●Head:8.5-19m
Parameter
Model | HP | Head(m) | GPH | GPM | L*W*H(cm) | GW(KG) |
NSC-L50 | 0.75 | 8.5 | 4491 | 75 | 48*26*35 | 10.1 |
NSC-L75 | 1 | 12 | 5548 | 92 | 48*26*35 | 10.7 |
NSC-L100 | 1.2 |
14.5
|
6341
|
106
|
56*26*35 |
13.1
|
NSC-L120 | 1.5 |
16.5
|
6605
|
110
|
56*26*35 |
14.3
|
NSC-L150 | 2 |
19
|
7398
|
123
|
56*26*35 |
15.5
|
Performance Curve & Installation Sketch
Technical Advantages
Technical
CFD Hydraulic Model be designed in Euro R&D center with higher efficiency than competitor
ODP Motor
Insulation class: F.NEMA service factor:single phase ODP motor.Built-in overheat protection short circuit device
Impeller
Impeller be designed in Euro R&D center with much more energy saving
Mechanical Seal
Mechanical Seal module material:Graphite/Silicon Carbide
Well Made Coil
Well made coil with a built in thermal protector allows longer lifetime of the motor.
SS Shaft
High-precision Stainless Steel shaft with higher strength and reduce the noise
Various Plug Available
Pump power plug can be custominzed to any style you need to meet local standard in every Country.
Perspective Cover & Pressing Cap
Material PC+10%GF
Filter Basket
Material:PP
Motor Fan Cover
Material:Stainless Steel
